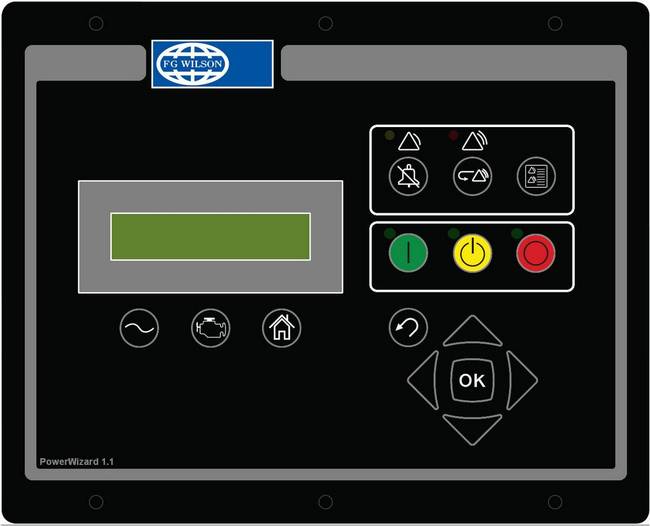

FG Wilson Power Wizard 1.1+ F20000-17486

On Sale!
$2,737.50$2,299.50 inc GST($2,090.45 ex GST)
The Macfarlane Advantage
  • Oil
  • Run-Up
  • Load Tested
Every generator we sell is:
  • Filled with oil at no extra cost
  • Run & load tested to rated capacity
  • Ready to use as soon as you receive it
Trust your generator with Macfarlane Generators, a real generator company that has been operating for 70+ years.

We stock a full range of spares, run a full service department, have stores across Australia and employ an experienced team with extensive generator knowledge

We provide the best generator sales and after-sales support in Australia.

The latest updated Power Wizard 1.1+
Genuine FG Wilson Perkins Product.
Part # F20000-17486 replaces -
F10000-94940
F10000-47170
F10000-63051

Suits FG Wilson Generators.
Not suitable for CAT Olympian Gensets without CAT Software programming tools.

Suitable for flat surface mounting in a type 1 weather proof enclosure.

Details

Please Call to Pre-Order
Latest Version & Availability.


General attributes

  • Modules for FG Wilson Gensets.
  • Simple menu layout for ease of navigation and monitoring
  • 40 event logs available of PowerWizard 1.1+ & 2.1
  • Robust electronics
  • Shortcut keys for immediate access to engine or AC metering
  • Integrated metering and controls reducing components & wiring


Specifications

Input voltage DC = 10.5 - 32
Relay outlet = 2 Amps Maximum at 28 Vdc
AC current input = 5 Amps and 1VA maximum
AC rms voltage input = 600 volts AC line-to-line maximum

Weight = 5.1kg

Dimensions = 35 x 35 x 16cm (approx packed size)

All units require programming to match the Genset it is being fitted to.

The Technician fitting this unit usually programs the panel.

If the full Genset ID number and details are supplied, we can program the units before dispatch for an additional fee.
