Leroy Somer D350 AVR

On Sale!
$1,339.80$1,263.57 inc GST($1,148.70 ex GST)
The Macfarlane Advantage
  • Oil
  • Run-Up
  • Load Tested
Every generator we sell is:
  • Filled with oil at no extra cost
  • Run & load tested to rated capacity
  • Ready to use as soon as you receive it
Trust your generator with Macfarlane Generators, a real generator company that has been operating for 70+ years.

We stock a full range of spares, run a full service department, have stores across Australia and employ an experienced team with extensive generator knowledge

We provide the best generator sales and after-sales support in Australia.

Free Shipping Australia Wide

Genuine Leroy Somer D350 digital automatic voltage regulator (AVR) for industrial alternators provides excitation current up to 5A with excellent reliability for permanent magnet (PMG) or AREP (auxiliary winding) excitation types.

Designed to fit LSA40 to LSA52.3 and TAL 40 to TAL 49 alternators with SHUNT, permanent magnet (PMG) or AREP (auxiliary winding) excitation types.

These are new and GENUINE LEROY SOMER AVRs direct from the factory.

Replaces the Analog R438 AVR.

Details

Leroy Somer stopped production of the R438, superseding this to the new D350 Digital AVR.

These new Digital AVR types requires -

  • The installation of new plugs and pins to suit the D350 AVR,
  • The AVR needs to be programmed with Easy Reg software using with the appropriate config cables.
  • NFLink Configuration Cable Kit.

For customers wanting a direct Plug n Play replacement, we can offer the MAXIAVR R438 AVR.

D350 includes advanced protections such as over-excitation limitation and voltage sensing loss. It also includes speed detection capabilities, with over- and under-speed alarms. D350 also features voltage droop for Genset parallel operation, and it is equipped with a Load Acceptance Module (LAM) to handle load impact events.

Key specifications

TechnologyDigital
Excitation modeSHUNT, AREP, PMG
Rated excitation current5 A
Regulation accuracy (+/- %)0.25 %
Frequency range10 – 100 Hz
Voltage setting range (+/- %)10 %
kU/F limitation0.5 < k< 3
Loss of sensing voltage✓
Over-excitation limitation✓
Short circuit current limitation✓
Voltage droop✓
Parallel operation between alternators✓
Load Acceptance Module (LAM)✓

Compatible products

LSA 40
LSA 42.3
LSA 44.3
LSA 46.3
LSA 47.2
LSA 49.3
LSA 50.2
TAL 40
TAL 42
TAL 44
TAL 46
TAL 47
TAL 49

Configuration & setup

D350 can be configured using the Leroy-Somer EasyReg Advanced software.

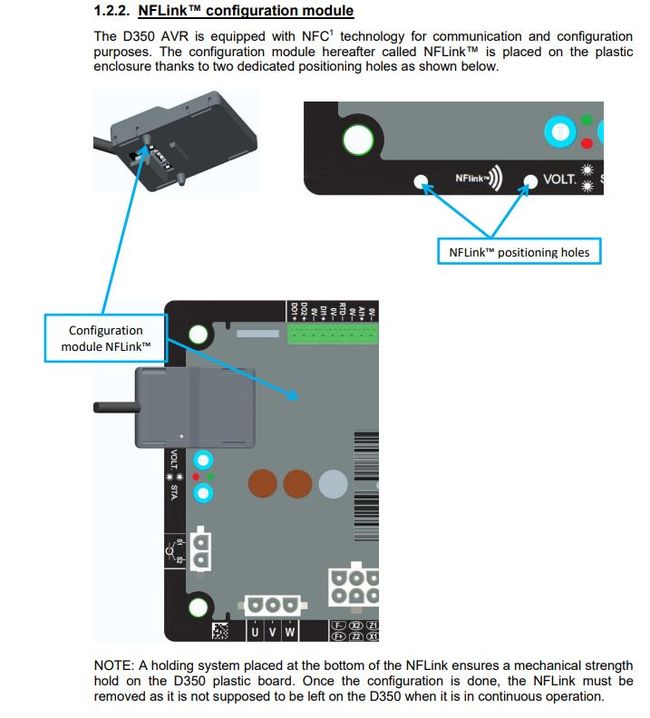

NFLink Configuration Module for LEROY SOMER AVR

Related Downloads
Leroy Somer D350 Datasheet (962.81KB)
