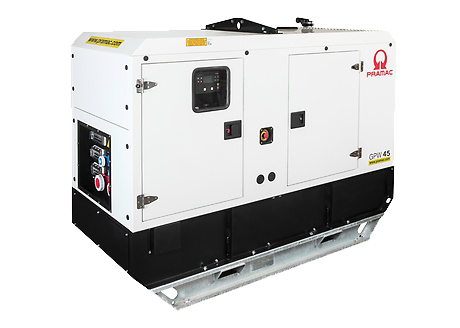

45.7kVA Pramac Yanmar Generator Set (GPW45Y/FS3A)
Please contact us for pricing and availability
- Oil
- Run-Up
- Load Tested
Every generator we sell is:
- Filled with oil at no extra cost
- Run & load tested to rated capacity
- Ready to use as soon as you receive it
The Pramac GPW philosophy offers a high degree of versatility. It allows for the most suitable configuration to be achieved according to real operational needs: local regulations, site specs, application and usage.
Details
Features
- Multiple solutions for power output/distribution - bus bar, sockets, power lock
- Canopy and base frame features guarantee easy handling
- General arrangement and large service access make for simple and efficient maintenance tasks
- Extended options list to enhance the genset safety, security and protection levels according to ambient/site conditions and specific regulations
- High quality standards and reliability with a specific design suitable for mobile applications
- A modular design allows high flexibility on scope of supply, with a wide range of mechanical and electrical options
- Environmentally Friendly
- Easy handling and transport
- Several fuel tank sizes available
- Easy service and maintenance
- DSE - Cutting edge control panel
- Socket panel
- High Protection
| Specifications | |
|---|---|
| Frequency | 50Hz |
| Voltage | 400/231V |
| Power factor | 0.8 |
| Standby power | 45.7kVA, 36.6kW |
| Prime Power | 43.4kVA, 34.7kW |
| Engine | Yanmar 4TNV98TZGPGE |
| Phase | 3 |
| Max Current | 66A |
| Alternator | Meccalte ECP32 2S4 C |
| Nominal Current | 63A |
| Dimensions (LWH) | 2200 x 1020 x 1313 mm |
| Weight | 867kg |
| Fuel Tank | Poly / Metal |
Note: Customers are responsible for ensuring the products meet their specific needs.
